Athena Industrial began with a focus on creating novel technologies and testing methods for a variety of industrial applications. Since then, we have become a Designer and Manufacturer of rail safety solutions; Including but not limited to, Remote Monitoring Systems, Rail Contact Fatigue (RCF) detection tools, Crossing Monitoring and Communication Technology.
Our mission is to assist our customers in their efforts to monitor, analyze, and protect their assets.
ARCD
Advanced Rail Condition Detector

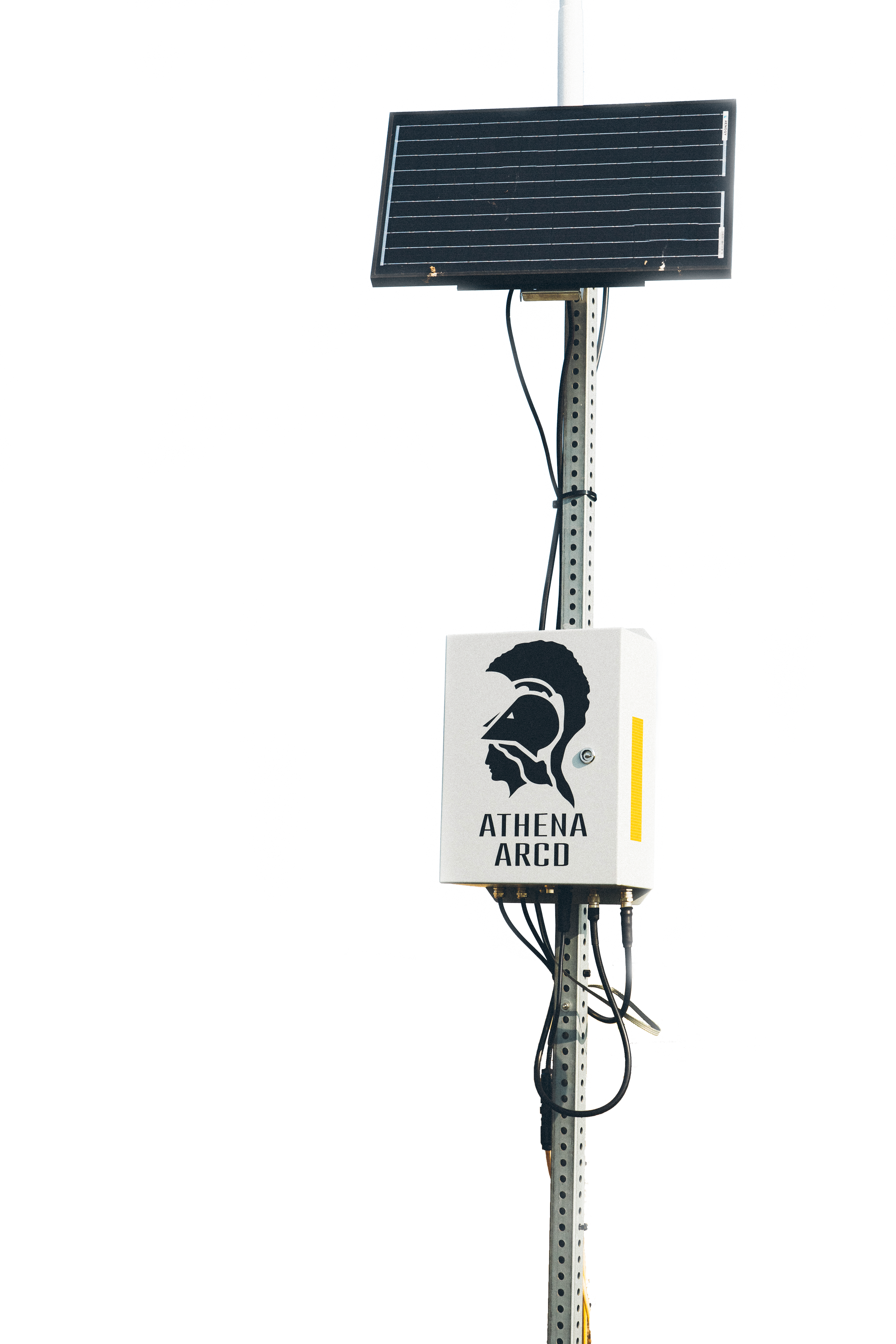

Advanced Rail Condition Detector (ARCD) is a robust, autonomous detection system to detect Train Presence and Broken Rail in monitored areas with emphasis on Dark Territory. The system was designed to detect Broken Rail and Train Presence in areas that do not have signals or train control systems (Dark Territory) with emphasis on locations without available communication services.
-
-All clean breaks within the rail.
-Breaks which happen under the train will be detected once the train leaves the monitored section.
-
Package: IP65
Operating: -55 C to +50 C ambient
-
US Pat# 11,975,750 B2
CAN Pat# 3,154,954
-
Power Source: Surface solar, external 12V - 22V
Battery: 12 AH (AGM or gel cell)
RAGA
Non-Contact Rail Head Integrity Scanning
Athena’s RAGA Rail Scanning System is a high speed, non-contact Rolling Contact Fatigue measurement tool for detecting and quantifying cracks and spalling in the running surface. RAGA scans from the field corner to the gauge corner covering the running surface of both rails and takes measurements at speeds up to 45km/h (25 mph aprox).
-
Maximum Speed 25 MPH / 45 KPH
-
Spalling
Cracking
-
Shaped Electromagnetic Field Imaging (SEMFI)
No Couplant is required for RAGA sensors or trolleys
10 mm working distance from rail
Unaffected by rain, snow, mud, sand, dust or grinding residue
ACMS
Autonomous Crossing Monitoring System
Athena’s Autonomous Crossing Monitoring System (ACMS) is a cost effective and easily configurable passive grade crossing system consisting of LED enhanced signs which alert the driving public to upcoming train activity.
-
Designed around the guiding principle of Athena’s ARCD Rail Break Detectors. ACMS is built for remote operation.
-
Patented Train presence detection technology actively monitors 1 mile in either direction of the crossing for train presence.
-
Enhance with LED Illumination. Designed to reduce the potential for accidents in these important parts of rail infrastructure.
-
ACMS System can be customized for any configuration of illuminated signage suitable
TrueTemp Link™
Rail Temperature Sensor

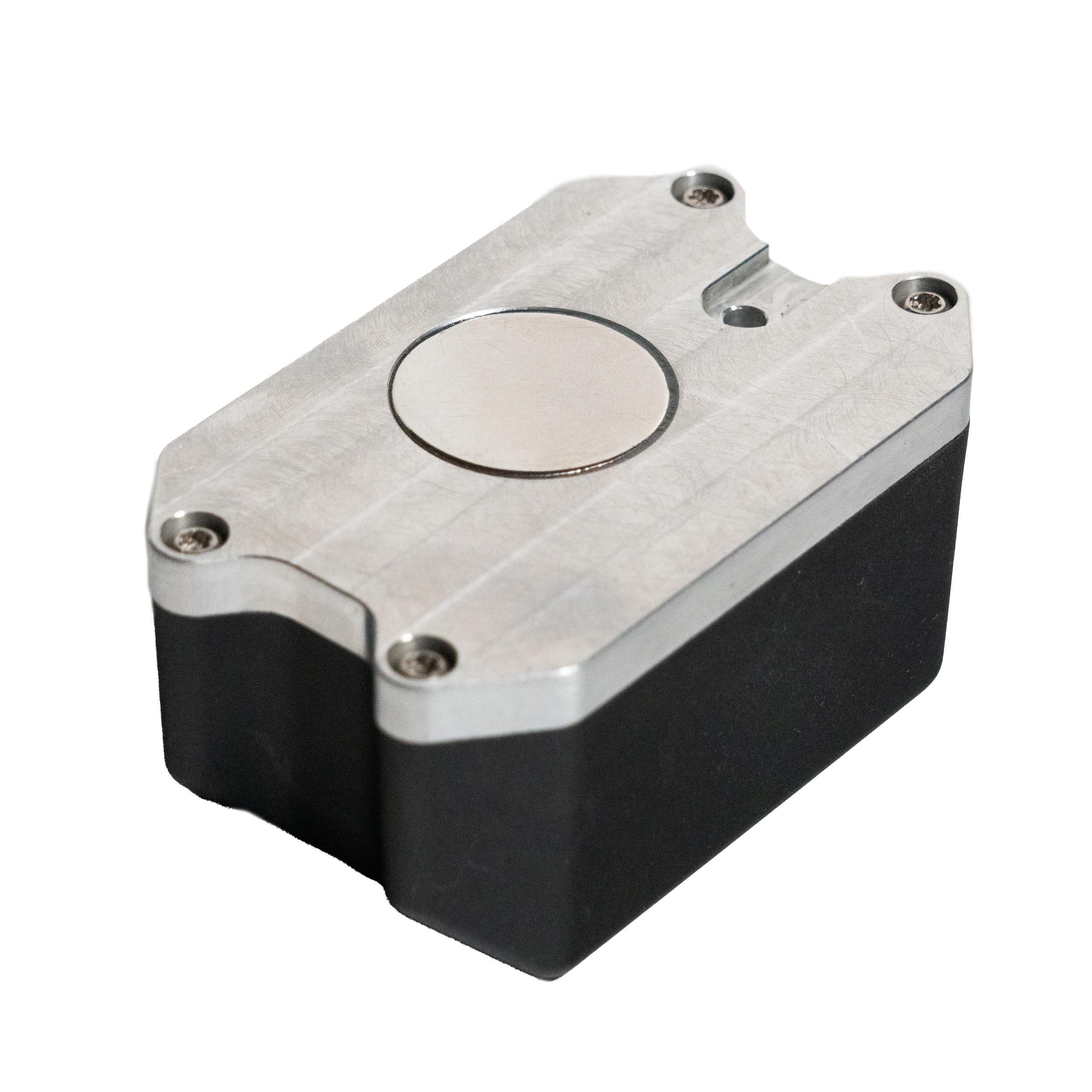

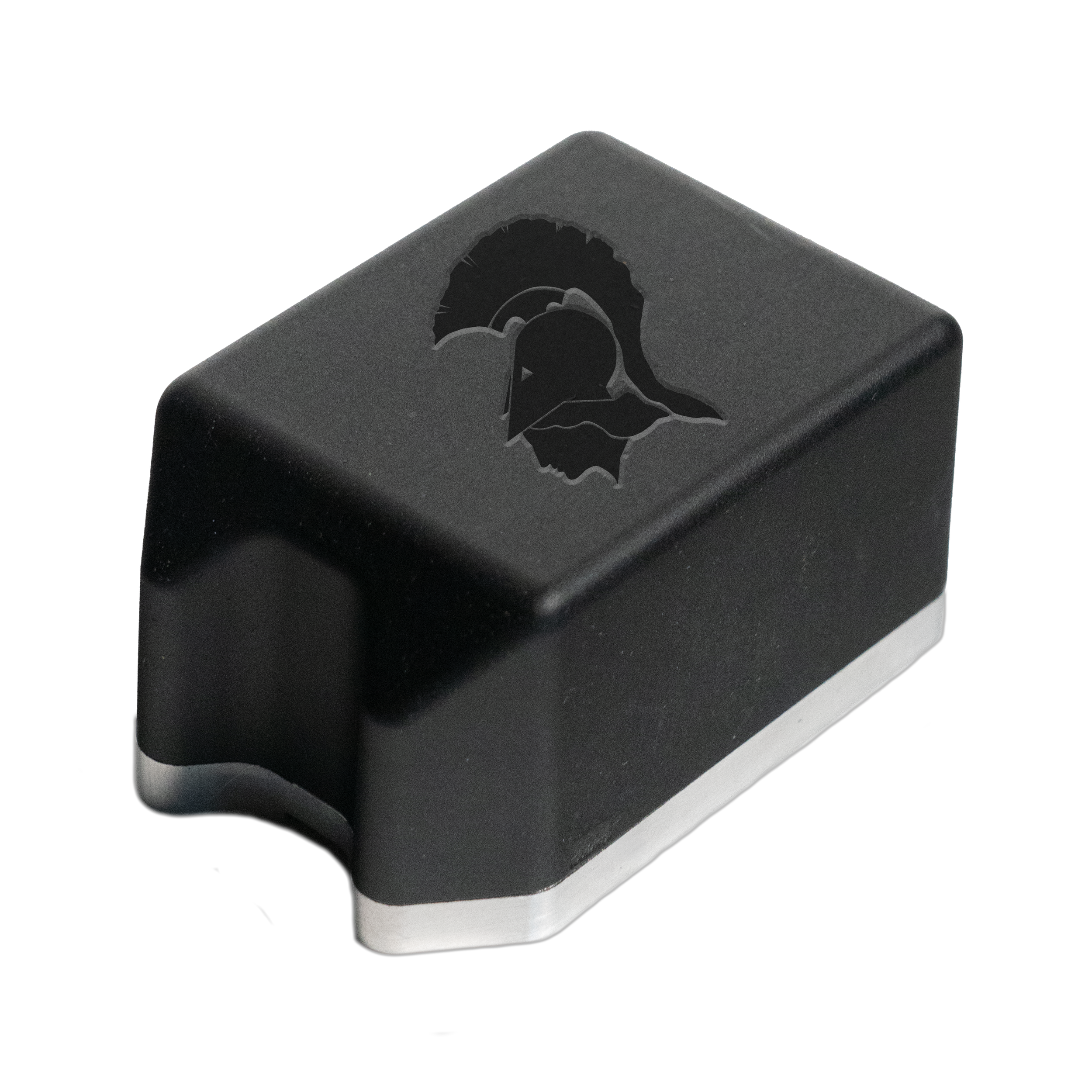

Athena’s TrueTemp Link is a rail temperature sensor offering live actual rail temperature. The magnetic sensor instantly attaches to the web of the rail providing scheduled measurements without requiring track side interventions.
-
Each sensor is equipped with proprietary stand-alone communication services that seamlessly interface with ARCD and other IoT devices
-
Increased safety through continuous monitoring and early detection of temperature changes.
-
Improve operational efficiency through threshold-based decisions such as slow orders and crew deployments without the need
-
Temperature detection ranges from -45 to +85 Celsius or -49 to + 185 Fahrenheit, with ± half degree Celsius accuracy.
